Installation instructions for the Arc Flash Oil Sample Device Assembly for padmount transformers.
Download the complete installation instructions for step by step assembly information, required tools, and component details.
Download the Oil Sample Tap Kit Installation Instructions PDF

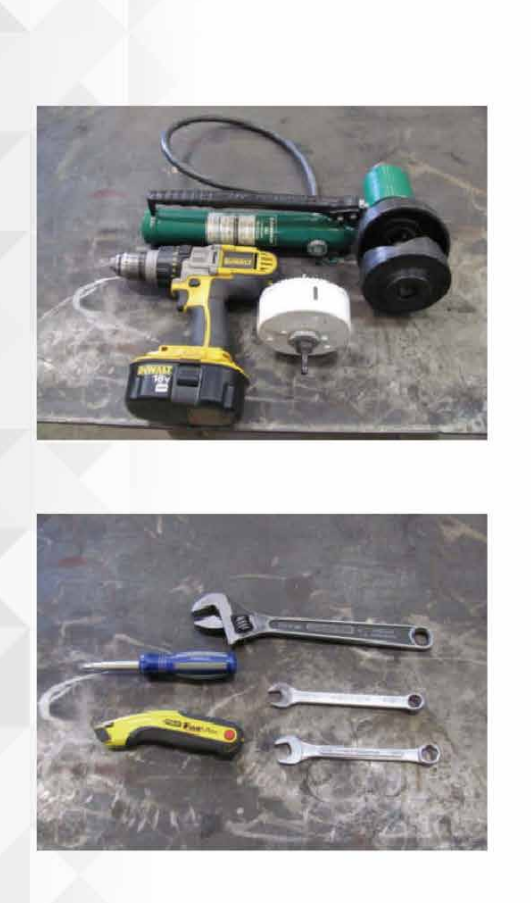

The following tools are required to mount the device:
• Greenlee 4″ knockout or 4 1/2″ hole saw
• 7/16″ or 1/2″ drill bit
• Sharpie
• Phillips and common screwdrivers
• 9/16″ and 11/16″ box end wrenches
• Crescent wrench
• Drill
• Razor knife
The transformer must be de-energized before installing the Arc Flash Oil Sample Device. Never attempt to install the device on a transformer that is in service. Follow and comply with all applicable OSHA and NFPA-70E standards.
