Whether you have planned or emergency temporary power needs, we provide custom solutions tailored to your project. We collaborate with you to ensure you get the right equipment, delivering safe, reliable, and cost-effective temporary power solutions.

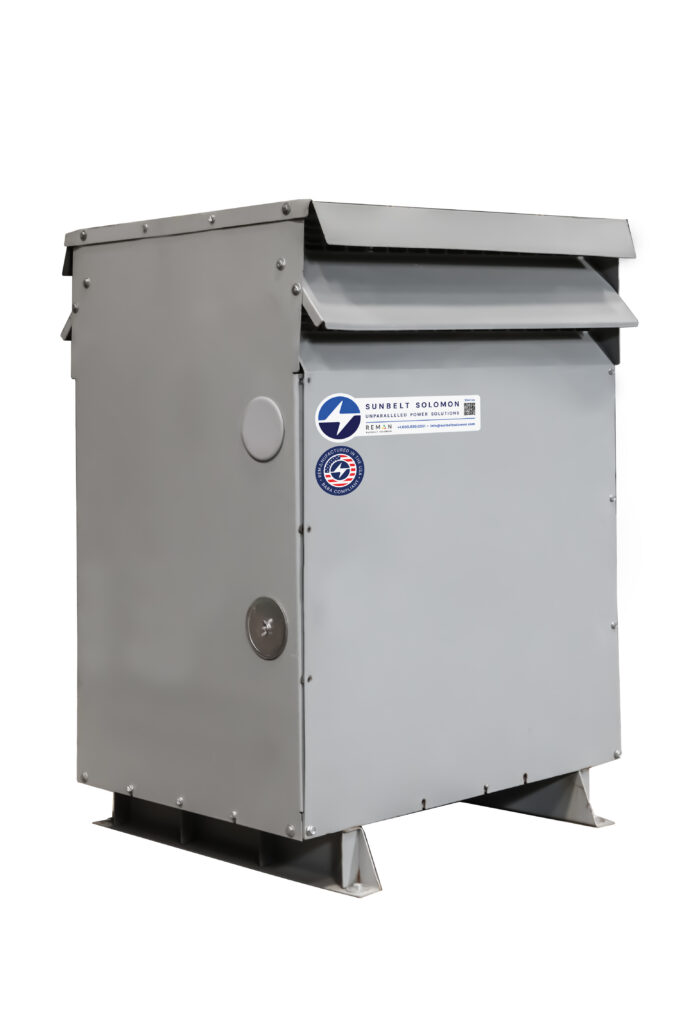

Dry-Types

Description
Standard Features
Optional Features

Dry-Type Transformer Features & Options:

  • Single Phase & Three Phase
  • Low and Medium Voltage
  • Low Voltage: Up to 800V
  • Medium voltage: Up to 35 kV
  • kVA Ranges: 5 kVA up to 7500 kVA
  • Frequency: 50 or 60 Hz
  • Industry Standard Impedance
  • Self-Cooled (AA) & Fan Assisted (AA/FA)
  • Standard Temperature Rise Options: 80°C / 115°C / 150°C
  • VPI and Cast Coil Windings
  • High Efficiency Silicon Steel Core Construction
  • DOE 2016 Compliant Designs
  • Voltage adjustment taps
  • Ground pads and lugs
  • Vibration Dampening Pads
  • Aluminum and Copper windings
  • NEMA 1 & NEMA 3R Enclosures
  • Designed, Manufactured, and Tested per ANSI, NEMA, and IEEE Standards (ANSI-C57-12 and NEMA ST-2)

Custom Options:

  • Fan Package w/ Temperature Controller
  • K-Rating
  • Electrostatic Shield
  • Step Up Design
  • Zig Zag and Grounding Transformer Design
  • Stainless Steel Enclosure
  • Cast-Coil Windings
  • Custom Bus Configurations
  • Custom Air Terminal Chambers
  • Custom Transition Sections for Unit Substation Designs
  • Custom Voltage Options
  • Retrofit for existing set up
  • Larger kVA Sizes Available Check with your Sales Rep
  • Switchgear Configuration with included equipment (Medium & Low Voltage)
  • Available Certifications UL, CSA & ETL
